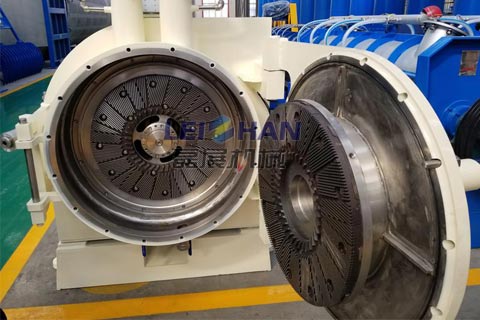

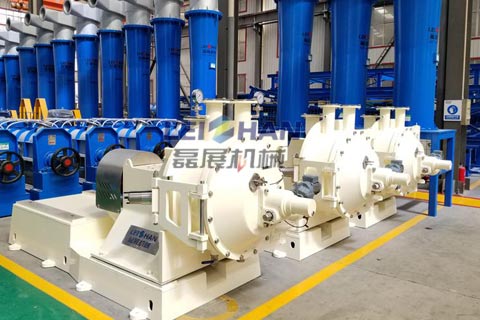

RF Series Double Disc Refiner
;
RF Series Double Disc Refiner is a new generation of waste paper pulping equipment, which is suitable for 3-6% consistency’s chemical pulp, waste paper pulp and other pulp’s continuous beating, which is an ideal pulping equipment at present.
Application & Feature
1. Mainly used for pulping, improving slurry beating degree to meet the paper making needs.
2. It can be installed various tooth refiner plates. Suitable various raw materials such as wood pulp , machanical pulp, chemical pulp, waste paper pulp etc.
3. Adopt constant power control system, beating effect is stable.
4. Accurate retract mechanism, easy to control, the beating effect is good.
Main Specification
| Type | RF20 | RF26 | RF34 | RF42 | RF52 |
| Disc diameter(mm) | 20-24 | 26-30 | 34-38 | 42-48 | 52-58 |
| Range of op.consistency(%) | 3.5-6.0 | ||||
| Min.flow(L/Min4%) | 400 | 700 | 1400 | 2200 | 6000 |
| Max.flow(L/Min4%) | 2400 | 4500 | 9000 | 16000 | 22000 |
| Max.power(KW) | 315 | 500 | 900 | 1700 | 3000 |
